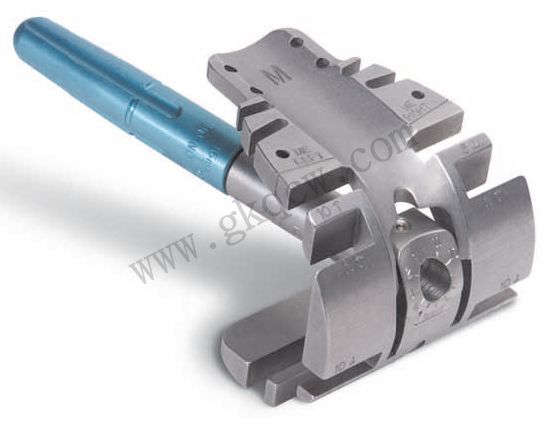

Duracon Trial Cutting Guide	Duracon Trial Cutting Guide
Duracon Femoral Components Exploded View	Duracon System Range of Motion
Duracon TS System	Duracon TS Components

Key features include:

        Two components:

• 1、Duracon TS – Femoral Components ：Duracon Total Stabilizer Revision Femoral Components are made of cobalt chromium alloy, which demonstrates excellent wear characteristics. Both left and right femoral components, with raised lateral flange, are designed to help improve patella tracking. These revision femoral components are all compatible with both PS and TS Inserts for intraoperative flexibility.

        Features and Benefits

• Femoral bone augmentation design

  • Distal and posterior femoral augmentations are mechanically attached to femur
  • Distal Femoral Bone augmentation blocks, 5mm, 10mm
  • Posterior and posterior femoral bone augmentation blocks: 5mm,10mm

  Offset adaptors

  • Can be positioned radially for adequate placement of femoral component relative to canal

  Stem extension design

  • Cobalt-chromium cemented and titanium-fluted non-cemented stem extender options address all approaches to IM fixation
  • Interchangeable stems minimize OR inventory; one set works for both femoral and tibial components
  • Non-cemented stem lengths for femoral and tibial components: 80mm,155mm
  • 12 diameters: 10mm-19mm; 21mm,23mm)
• 2、Duracon TS – Tibial Components ：The core material of Duracon TS Revision Tibial Components is Cobalt chromium alloy. The broad keel of these products helps to effectively stabilizes the component on poor quality bone commonly seen in revision tibias.

• Features and Benefits

  Tibial Bone Augmentation Design

  • Bone augmentation blocks are mechanically attached to tibial tray
  • Tibial bone augmentation blocks: 5mm,10mm

  Offset Adapters

  • 4mm, 6mm, 8mm offset adaptors allow radial positioning of the tibail tray about the Stem Extender for bone coverage in tibial applications
  • Offsetting capabilities minimize tibial tray overhang that may occur when using Stem Extenders

  Tibial Bearing Inserts – UHMWPE

  • TS Insert provides posterior stabilization, varus/valgus and rotational stability
  • Available in 11mm-31mm thicknesses

  Stem Extension Design

• Cobalt-chromium cemented and titanium-fluted non-cemented stem extender options address all approaches to IM fixation
• Interchangeable stems minimize OR inventory; one set works for both femoral and tibial components
• Non-cemented stem lengths for femoral and tibial components: 80mm,155mm
• 12 diameters (10mm-19mm; 21mm,23mm)
